BEVELED

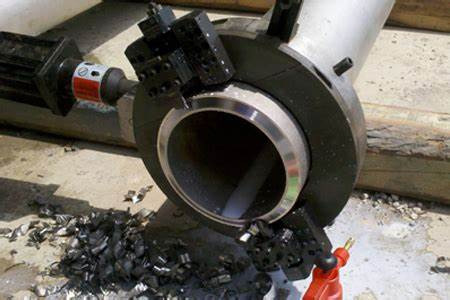

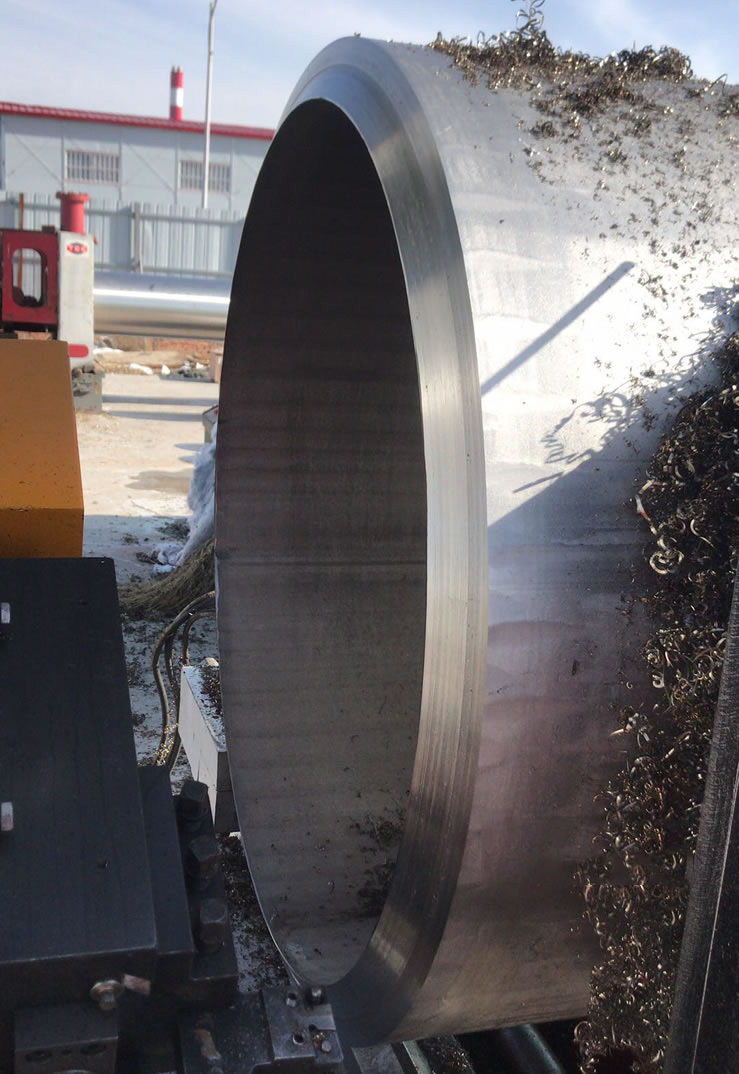

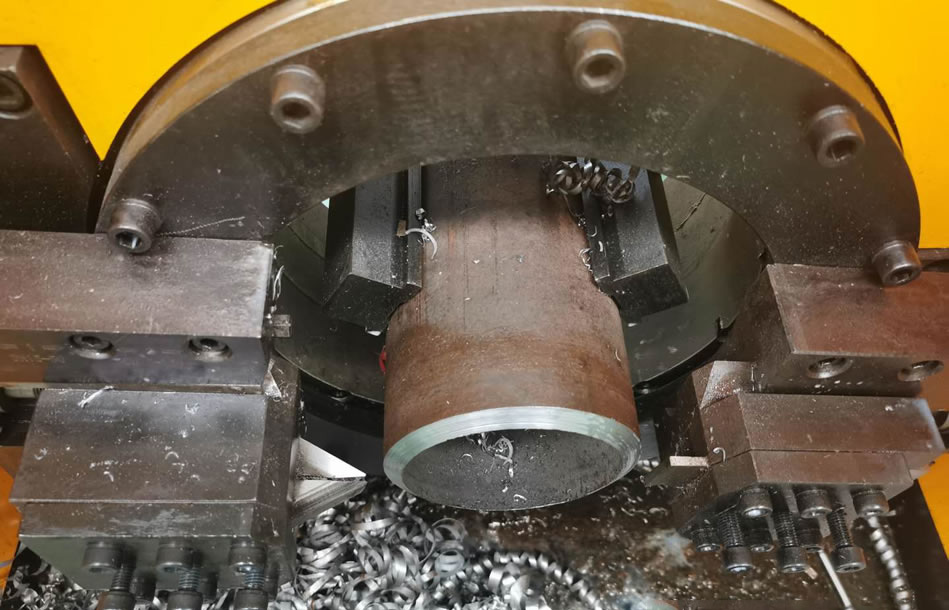

Pipe end beveled
It refers to a slope formed by the need to process and grind the interface when the pipe is welded to the pipe. Common beveled types are: butt beveled and angle beveled (engineering, to distinguish the butt joint in the angle joint and the general butt weld, it is now divided into three categories: butt, beveled angle joint, angle joint). There are 45 degrees to 30 degrees, and the forms are also V-shaped, U-shaped, and I-shaped, and the specific beveled form is selected according to different pipe wall thicknesses. The butt beveled mainly includes: K type, V type, X type, U type, Y type, UV type, VV type, etc., usually 3mm-10mm use V type, more than 10mm use U type.
Angle beveled has: T-type, lap joint, J-type, etc. According to the design or process needs, the beveled that processes the weldment part to be welded into a certain geometric shape is called a beveled. The purpose of the beveled opening is to obtain a weld that is completely penetrated in the thickness of the weldment.
BEVELED
BEVELED
BEVELED
